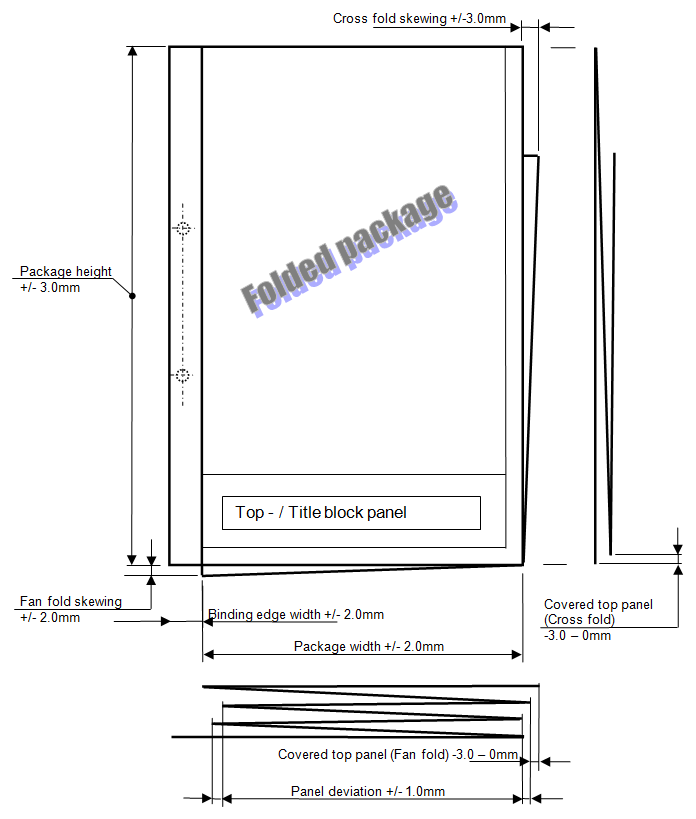

Specification and tolerances

Fan fold - max length
Cross fold - max length 		28 folds (or longer in segments of 28 folds - to be finalized manually)
47"
minimale width
max width 		11"
36"
Paper weight
best quality with 		60 g/m² - 110 g/m²
75 g/m² - 80 g/m²
Panel width fan folder
Margin 		7" - 12" (2400-2: 4" - 20")
0 - 1"
Folding speed 2,5 - 18 m/min
Fold programs 8 editable programs 1-8
4 special programs A-D
Temperature 59°F - 95°F
Humidity 20% - 80%
Maximum altitude 6500 feet
Voltage 115V/230V - 50/60Hz
8.0A/6.0A
Main fuse 10A
Consumption standby
Consumption max. 		40W
300W
weight
gross weight

 364 lb
437 lb

Maximal Curl

Strong paper curl has an influence to quality and reliability of the system.

Quality issues and jams could occur by a curl bigger than 30mm

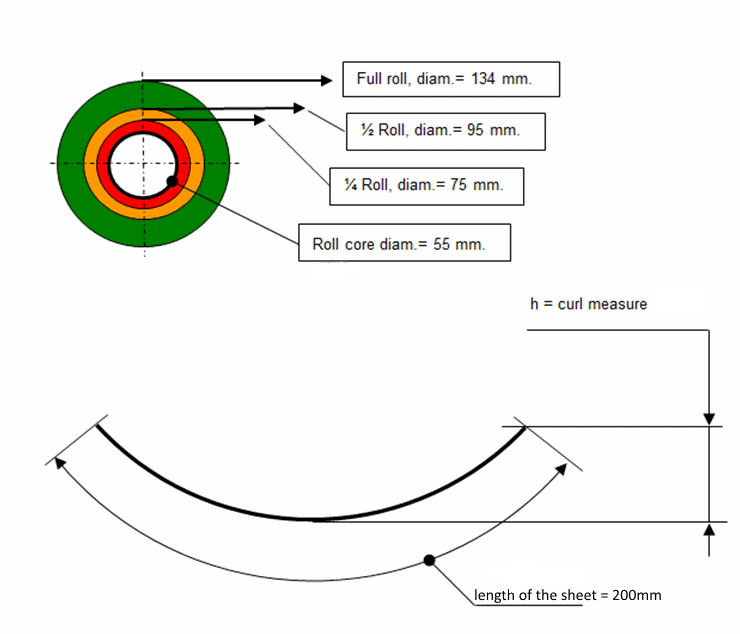

To measure the paper curl, cut a 200mm long piece from the copy and lay it face down on a table. Measure the distance between the tables surface and the highest poin of the copy.
Curl related issues:

Curl < 30mm
Curl 30 - 50mm
Curl > 50mm

without issues
possible jams, poor quality
out of specification
