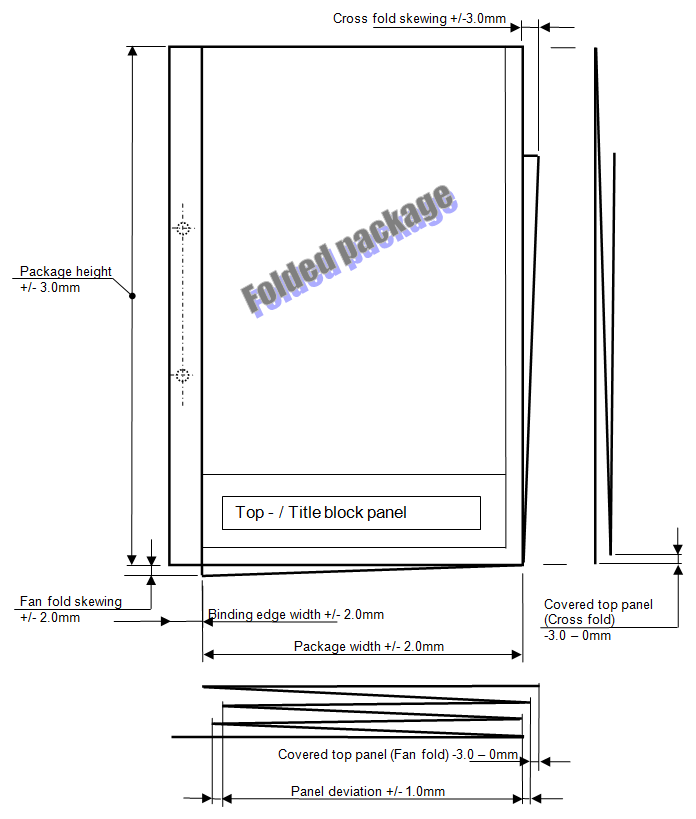

Specification and tolerances

Fan fold - max length
Cross fold - max length		 28 folds (or longer in segments of 28 folds - to be finalized manually)
1200mm
min width
max width 		279mm
1210mm (48 inches)
Paper weight
best quality with 		60 g/m² - 110 g/m²
75 g/m² - 80 g/m²
Panel width fan folder
Margin 		180 - 305mm (optional: 100 - 420mm)
0 - 30mm
Folding speed 2,5 - 18 m/min
Fold programs 8 editable programs 1-8
4 special programs A-D
Temperature 15°C - 35°C
Humidity 20% - 80%
Voltage 115V/230V - 50/60Hz
8.0A/6.0A
Main fuse 10A
Consumption standby
Consumption max. 		40W
300W
weight
gross weight

 165 kg
198 kg

Maximal Curl

Strong paper curl has an influence to quality and reliability of the system.

Quality issues and jams could occur by a curl bigger than 30mm

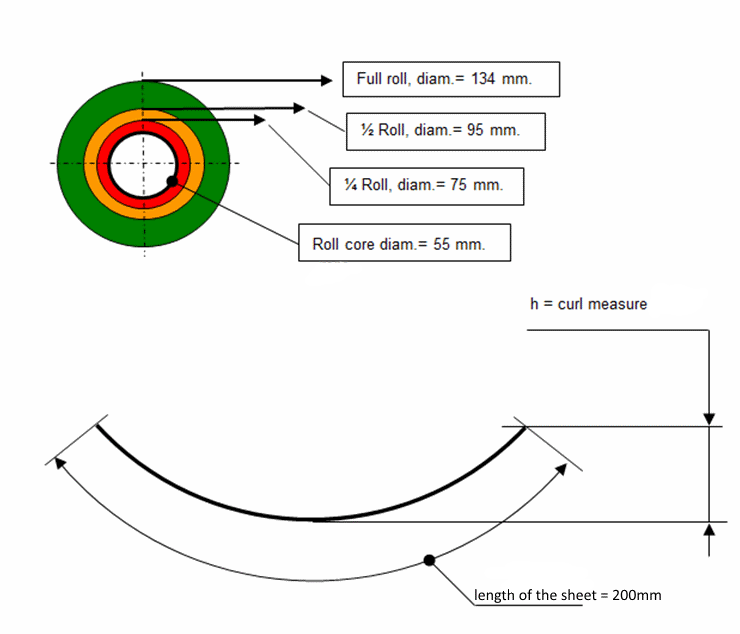

To measure the paper curl, cut a 200mm long piece from the copy and lay it face down on a table. Measure the distance between the tables surface and the highest poin of the copy.
Curl related issues:

Curl < 30mm
Curl 30 - 50mm
Curl > 50mm

without issues
possible jams, poor quality
out of specification
