ES-TE Folding Systems

There are 8 folding programs available. Through the keys and you select the desired folding program.
The selected program number will appear on the left hand side of the display.

The center of the display shows an image of the selected fold style.

In Order to change the status of the cross folder or the rotation unit press the cursor will start to blink.

Buttons and move the cursor from icon to icon.
Selected icons blink frequently.

Pressing buttons and edit the blinking setting.

All folding progams can be edited in increments of 1mm within the following range:

• binding margin: 0-50 mm
• panel width: 160-210 mm

Press the cursor will start to blink. Buttons and move the cursor from icon to icon.
Selected icons blink frequently.

Pressing buttons and edit the blinking settings.

Example:

Program 1 should process packages 185 mm wide with a filing margin of 25 mm.

• Select folding program 1 with button or
• Press button

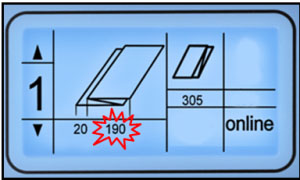

• Press button until the number below the fold package icon blinks
• Press buttons in order to set the package width to 185 mm

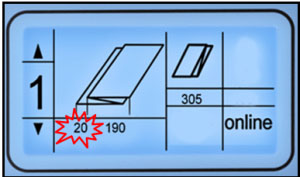

• Move the cursor forward to the figure representing the margin width

• With buttons  change the value to 25 mm
• Press button within three seconds in order to store the new values

Please notice that the adjustable width of the package must be at least 160 mm up to a maximum of 230 mm. The range of adjustment of the margin is 0 - 50 mm. Therefore a package of 155/65 is not adjustable.

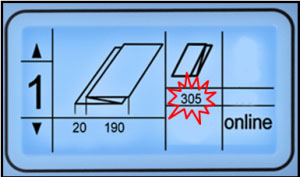

Change the cross fold length from 200mm to 420mm.

• Press or to change the value
• Press
